Amana Tool - 658040-1 Carbide Tipped Dado 8" Dia x 46T ATB/Ft -5 Deg, 1" Bore, Dad
Product details
| Management number | 218697238 | Release Date | 2026/05/03 | List Price | US$161.42 | Model Number | 218697238 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

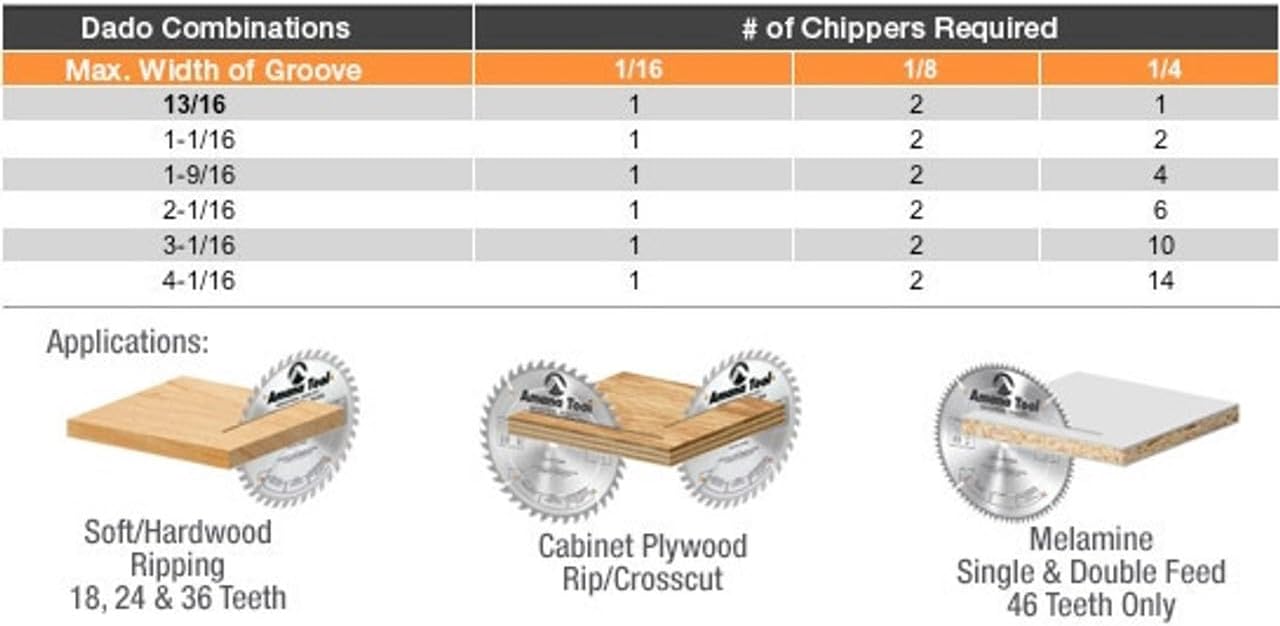

Dadoes (cross-grain cuts) and grooves (cuts with the grain) are Cut efficiently on the table saw with a dado stack set. Unlike a wobbler, a stack set produces a flat-bottom cut with chip-free edges. Amana Tool makes dado stack sets For every machine and every type of woodworking material. The standard Width capacity ranges from 1/4" To 13/16". Additional Chippers may be purchased separately to expand the capacity beyond 13/16". The standard set, regardless of diameter or tooth count, consists of two outside saw blades and four inside Chippers. The outside blades feature hollow-ground plates for proper clearance, and alternate top bevel (ATB) grind with every sixth tooth Flat ground (ft), #658040-1, (D) diameter: 8 (200mm), teeth: 46, (D) bore: 1, tooth grind: ATB/ft, hook angle: -5°, kerf (B): 1/4 - 13/16, Description: (5) 2-wing Chippers, 658040-1 carbide Tipped dado 8 inch dia X 46T ATB/ft -5 deg, 1 inch bore, dado set with five 2-wing Chippers
- (D) diameter: 8 (200mm)
- Teeth: 46
- (D) Bore: 1
- Tooth grind: ATB/ft
- Hook angle: -5°
| UPC | 738685658048 738685758045 |
|---|---|
| Color | Silver |
| Model | 658040-1 |
| Set Name | Dado Set |
| Brand Name | Amana Tool |
| Style Name | Modern |
| Item Weight | 3.35 Grams |
| Part Number | 658040 |
| Manufacturer | PROOK |
| Material Type | Carbide |
| Item Type Name | Amana Tool |
| Number of Teeth | 46 |
| Compatible Devices | Table saws |
| Compatible Material | Wood |
| Included Components | 1 Amana Branded Tool |
| Global Trade Identification Number | 00738685758045 |
